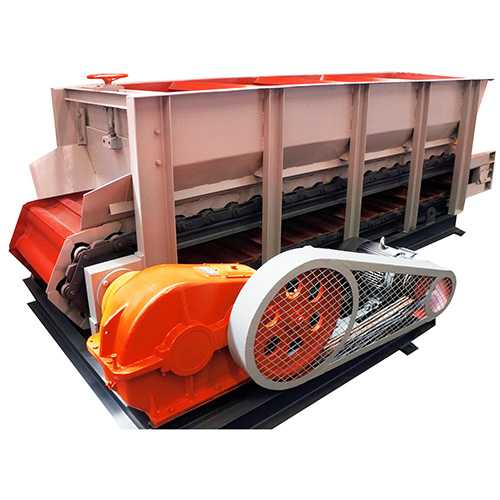

Chain plate feeder,Steel board Box feeder,Yingfeng Machinery Co.,Ltd

Performance Characteristics：

Auxiliary equipment for transportation machinery on brick and tile production lines;

Robust structure, high traction strength and high productivity;

New design, stable and uniform feeding speed;

Uniform speed regulation, automatic overload protection;

Suitable for different raw materials and specifications extruder

Technical Patameters:

Type	Capacity (m³/h)	Power (kw)	Size(mm)	Moisture	Raw material Input size(mm)
XGL60X300	10-35	5.5	3400X1490X1260	≤18%~24%	＜200
XGL80X400	10-45	7.5	4760X1950X1320	≤18%~24%	＜200
XGL80X500	10-45	7.5	5580X1980X1430	≤18%~24%	＜200
XGL100X500	20-100	11	5600X2450X1650	≤18%~24%	＜200

Click Here to See All Clay Brick Making Machine

Parameters

Technical Patameters:

Type	Capacity (m³/h)	Power (kw)	Size(mm)	Moisture	Raw material Input size(mm)
XGL60X300	10-35	5.5	3400X1490X1260	≤18%~24%	＜200
XGL80X400	10-45	7.5	4760X1950X1320	≤18%~24%	＜200
XGL80X500	10-45	7.5	5580X1980X1430	≤18%~24%	＜200
XGL100X500	20-100	11	5600X2450X1650	≤18%~24%	＜200
