Box feeder,belt box feeder,rubber belt box feeder,Yingfeng Machinery Co.,Ltd

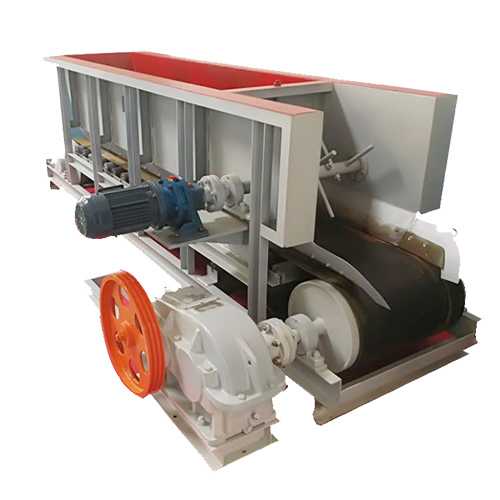

Product Introduction of Belt Box Feeder:

Box Feeder is one of feeder’s equipments which balances and rations the materials that you feed in. By adjusting the height of flash board and the speed of conveyor belt, it will control the quantity of feed-in raw materials, balance pug and internal combustion material proportionally, and crush the large soft mud.

Advantages:

Simple structure,Low cost,delivering a high (18%-24%) moisture content of raw materials,the most widely used box feeder

Technical Parameters:

Type	Capacity ( m³/h)	Power(KW)	Size	Moisture	Raw materialInput size(mm)
GD50X250	10~25	4	2650X1600X1260	≤18%~24%	＜250
GD60X300	20~30	5.5	3670X1890X1470	≤18%~24%	＜250
GD80X400	20~50	7.5	4670X2050X1470	≤18%~24%	＜250
GD100X500	45~80	6~7.5	5560X2250X1470	≤18%~24%	＜250

Click Here to See All Clay Brick Making Machine

Parameters

Parameters:

Type	Capacity ( m³/h)	Power(KW)	Size	Moisture	Raw materialInput size(mm)
GD50X250	10~25	4	2650X1600X1260	≤18%~24%	＜250
GD60X300	20~30	5.5	3670X1890X1470	≤18%~24%	＜250
GD80X400	20~50	7.5	4670X2050X1470	≤18%~24%	＜250
GD100X500	45~80	6~7.5	5560X2250X1470	≤18%~24%	＜250
