Automatic Arrow-Penetrating Strapping and Packaging System

I. System Overview

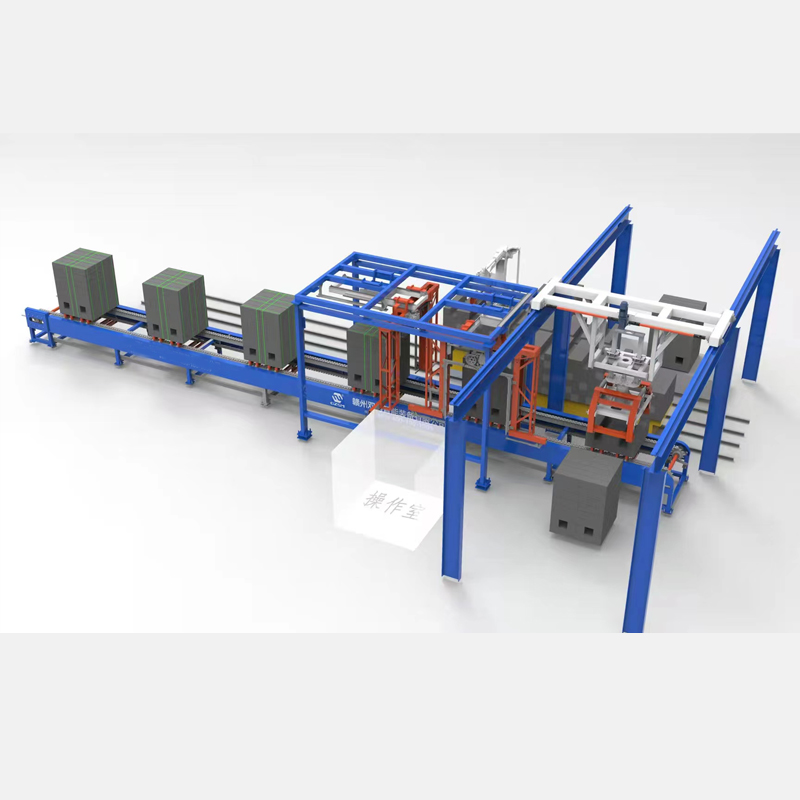

The Automatic Arrow-Penetrating Strapping and Packaging System is an advanced intelligent solution designed for the automatic handling, grouping, stacking, and strapping of fired clay bricks.
The system is composed of the following units:
1. Automatic brick unloading system
2. Brick conveying system after unloading
3. Brick grouping system
4. Automatic palletizing system
5. Automatic arrow-penetrating strapping and packaging system
The entire system is controlled by a high-end PLC control platform, while the operation interface adopts a touch-screen HMI (Human-Machine Interface), providing a highly efficient, safe, and user-friendly control experience.
This system can fully meet various brick packaging requirements across different plant layouts and production capacities.

II. Product Features
1.Wide adaptability — suitable for various brick types, such as standard bricks, KP1 hollow blocks, insulation blocks, and special-size products.
2.Adjustable forklift holes — automatically reserves forklift slots; both the position and size can be flexibly adjusted according to different product types.
3.Flexible strapping modes — supports both horizontal and vertical strapping methods, ensuring stable load integrity.
4.Flexible packaging modes — customizable options for palletless packaging or pallet circulation packaging, depending on customer needs.
5.High automation and reliability — the PLC system ensures precise synchronization of all mechanical units, achieving consistent packaging quality.
6.Durable and efficient design — key components are made of high-strength steel and equipped with wear-resistant mechanisms, extending service life and reducing maintenance.
7.Safety and convenience — automatic arrow penetration and strap tightening reduce manual labor, improve packaging speed, and enhance operator safety.

III. Technical Highlights
1. PLC + Touch Screen Control: Real-time monitoring, fault diagnostics, and production data tracking.
2. Servo Drive System: High precision in motion control, ensuring stability and accuracy during packaging.
3. Modular Design: Easy to integrate into existing brick plant layouts or upgrade from semi-automatic packaging lines.
4. High-Speed Strapping Head: Adopts advanced arrow-penetration technology for fast, firm, and reliable binding.
5. Energy-Efficient Operation: Low power consumption and minimal air demand compared to traditional strapping systems.

IV. Advantages
1. Improves packaging efficiency and consistency
2. Reduces manual labor and safety risks
3. Ensures perfect load stability during transport
4. Compatible with different pallet and packaging types
5. Provides a complete automation solution for modern brick plants

V. Applications
This system is widely used in:
1. Clay brick plants
2. Hollow block and insulation brick production lines
3. Construction material packaging facilities
It is especially suitable for fully automatic two-time firing (secondary stacking) or high-end brick manufacturing lines, where stable, efficient, and standardized packaging is required.

VI. Optional Configurations
1. Pallet feeding and stacking system
2. Wrapping film unit (for dust and moisture protection)
3. Labeling or marking system
4. Remote monitoring and data management platform
