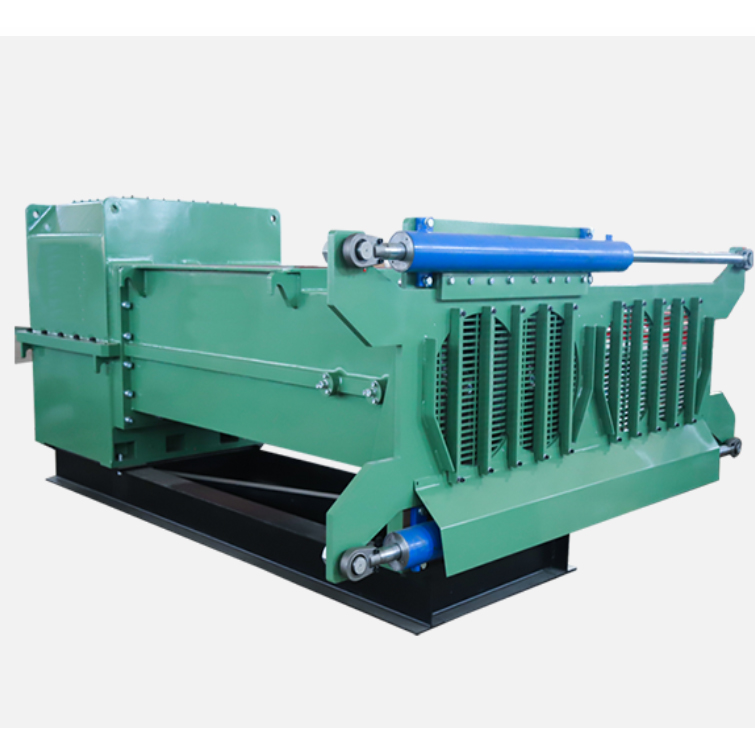

Screen plate double shaft mixing extruder
Category: [Mixer Machine]

Send inquiry Buy It

Equipment introduction
Pre-screen Extruder is a key piece of equipment in the brick and tile production line, primarily used for raw material pre-processing and primary forming. Positioned before the vacuum extruder, it is referred to as a "pre-screen" device. This equipment screens and preliminarily compresses the raw material through a mesh plate, preparing it for subsequent vacuum extrusion molding.

This equipment is capable of mixing and extruding raw materials, thus improving its density and plasticity. The screen plate at outlet helps to filter the impurities such as grass roots and bark from the soil, in order to low the blockage accidents and save the production cost. The equipment is especially suitable for high-quality thin-wall production. The screen plate is controlled by a hydraulic system, supporting the plate replacement or changing without stopping the machine.

Parameters

Model	Capacity (m³/m)	Swing diameter (mm)	Length of mixing tank (mm)	Extruding length (mm)	Overall dimension (mm)	Weight (t)	Power (kW)
SJJ500	25-35	φ500	1200	750	4200 x 3200 x 1600	9	75/90
SJJ550	35-50	φ550	1200	750	4200 x 3200 x 1600	12	90/110
SJJ620	40-75	φ620	1400	800	4400 x 3500 x 1900	15	110/132
SJJ720	60-110	φ720	1600	900	5500 x 3800 x 2200	17	132/16
