The shuttle kiln is a batch kiln, which can not only meet the continuous large-scale production, but also can be used for small-scale intermittent production. The production method and time arrangement are very flexible. industrial equipment.

Classification
Shuttle kilns are classified according to the energy used: natural gas furnaces, gas generators and direct coal-fired furnaces. Natural gas furnaces are environmentally friendly, energy efficient, and have a high maximum temperature. In the early stage, natural gas pipelines need to be opened or filled with gas, and a special natural gas burner needs to be configured. The gas gas generator is mainly composed of furnace body, air supply system, water supply system, coal feeding mechanism, slag discharge device, coke gas, electrical control system, etc.

production system

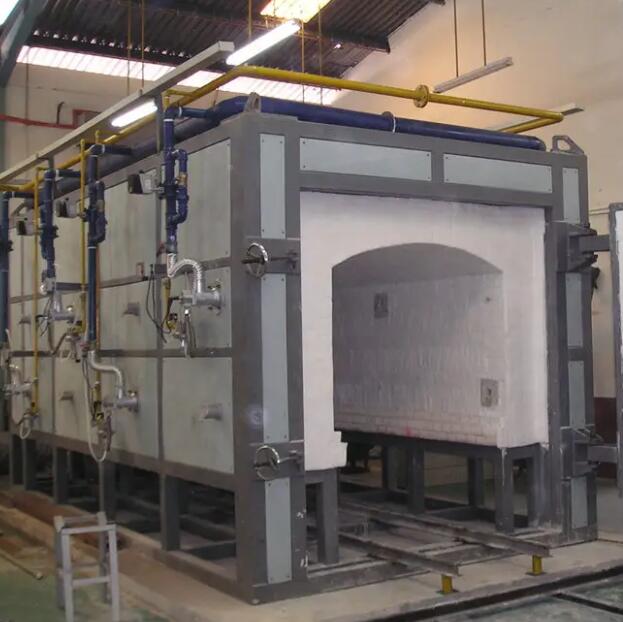

The production system of shuttle kiln is composed of fuel supply and combustion equipment, combustion fan, flue gas-air heat exchanger, tempering fan and exhaust fan. The kiln body of the shuttle kiln is rectangular. The masonry of the kiln wall is divided into three layers along the thickness direction. The working lining is made of high-strength and high-grade refractory insulation bricks. on the kiln wall. The roof of the kiln adopts a flat ceiling structure, and the masonry is also divided into three layers. for the sealing layer.
Since the kiln door is often moved, the masonry of the kiln door is two-layered, the inner layer is high-strength and high-grade heat-insulating bricks, and the outer layer is an insulating layer, which is pasted on the metal shell of the kiln door with refractory fiber felt. The burners are installed on the kiln wall, and there are one or two rows depending on the height of the kiln. The kiln car table is used as the bottom of the kiln, and the kiln roof and kiln wall form the firing space of the kiln. The main flue is left in the center of the lining brick of the kiln car, which is connected to the underground flue. One end (or both ends) of the kiln is provided with a kiln door, and the kiln door can be set separately or built at the end of the kiln car. The skirts on both sides of the kiln car are inserted into the sand sealing groove of the kiln wall. There are curved sealing grooves between the kiln car and the kiln car, between the kiln car and the end wall and the kiln door. There are many ventilation holes in the lower part of the sand sealing groove of the kiln wall, which is beneficial to the heat dissipation at the bottom of the kiln car and prolongs the service life of the kiln car.

We can design different sizes of shuttle kiln based on clients requirements
