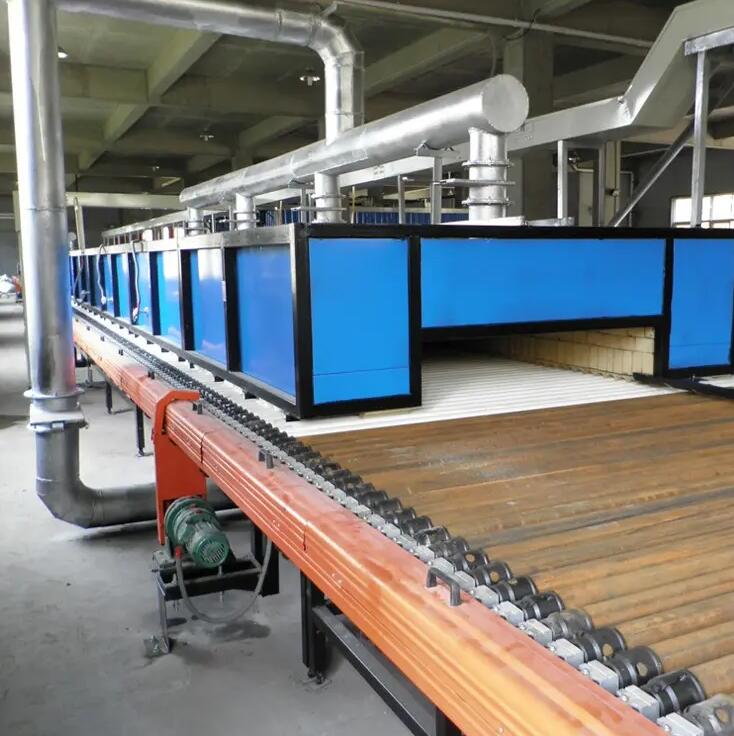

Gas electric rotary roller kilns for ceramic tile

What is a roller kiln? What is its working principle and function?

Brief Introduction

1.1 This electrical heating roller kiln project is designed by our professional technical designer team, which combined national conditions and roller kiln characteristic from domestic and abroad, optimized design to produce high quality, high efficiency and energy saving roller kiln. With the advantage of large output, stable quality, low energy consumption, easily operation and others, it is ideal firing equipment.
1.2 Kiln adopts modulization design and field assembling method, to ensure the precision of manufacturing, meanwhile to shorten installation time. Kiln firing use gas fire flame direct fire heat products, to improve products quality and level, reduce energy consumption and save more energy.
1.3 This kiln adopts excellent refractory thermal insulation materials, use mullite light-weight refractory brick as liner in
firing zone. Thermal insulation materials use high quality insulates plate and light-weight insulates felt greatly reduce the heat dissipation of kiln.
1.4 This kiln use automatic and manual control according to requirement of actual work, while ensuring to reach technical
requirements at the same time, it can greatly save investment. The kiln driving use 45 degree helical gear driving by cycloid reducer, transducer control driving speed, it is easy to control firing cycle to meet the demand of firing requirement of different products. It has advantage of easy operation, convenient, stable and reliable driving and others.

Parameters

Specification

No.	Items	Unit	index	Remark
1	Product		Extrusion Roller Kiln
2	Firing cycle	min	140-160	adjustable
3	Firing temperature	℃	1260℃
4	Heating method		Gas
5	Kiln effective length	m	40	adjustable
6	Inlet roller table effective length	mm	1275
7	Outlet roller table effective length	mm	1700
8	High module kiln exterior width	mm	3300	adjustable
9	Unit length	mm	205020 196510
10	Kiln inner width	mm	1200
11	Kiln modules	unit	160
12	Roller spacing	mm	85
13	Roller dimension	mm	￠20×2550 1965*10
14	Roller quantity	pc	450	Exclude in-out roller table
15	Pre-heating section length	m	15
16	High-temperature section heating length	m	10
