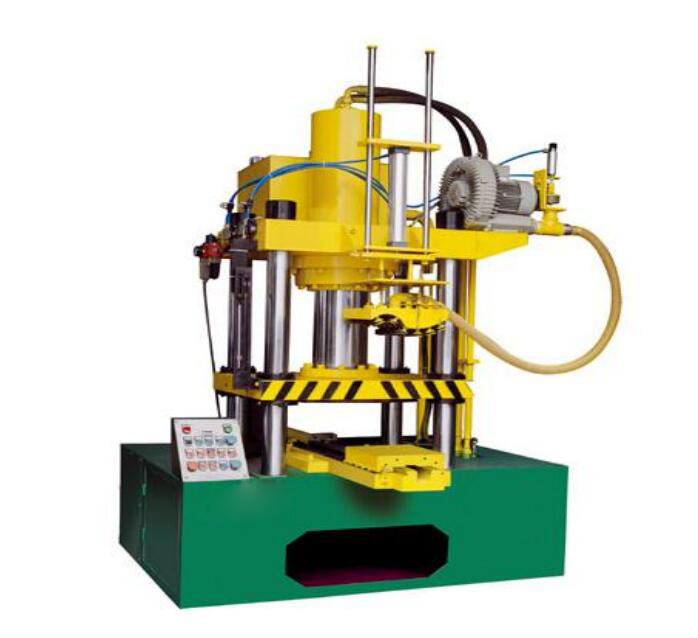

Automatic hydrualic clay roof tile press machine
Category: [Tile making machinery]

Send inquiry Buy It

Automatic hydrualic clay roof tile press machine can realize automatic tile press with more than 100 ton hydrualic pressure .

Mainly for producing different kinds and shapes of roofing tiles and its parts etc., to get more perfect matching for the building roof decoration.

Adapt to a variety of roofing tiles parts products of multi-shape, small-volume matched production

Parameters

Major Technical Parameters of Hydraulic Roofing Tiles Press Type YFJ-100

Dimension L x W x H	1,650 x 1,840 x 2,460 (mm)
Working Interval/Min.	8~10 (times/min)
Main Power	7.5 (kw)
Working Table L x W	700 x 900 (mm)
Main Cylinder Max. Pressure	1000 (kn)
System Max. Pressure	20 (mpa)
Pushing Cylinder Stroke	570 (mm)
Main Cylinder Max. Stroke	440 (mm）
Working Table High from Ground	550 (mm)
Weight	≈ 4500 (kg)
