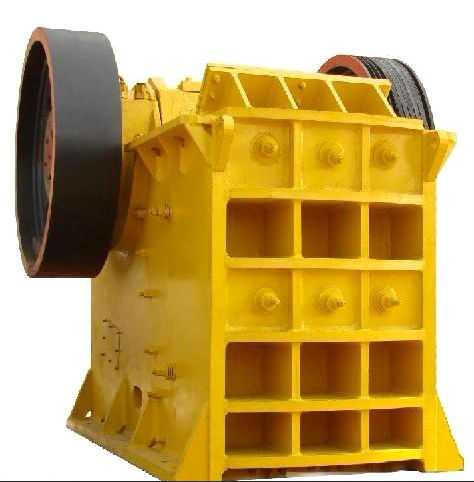

jaw crusher

The produce is used for coarse-crushing of medium hard material which is of lower moisture content and big block and it is the common equipment in the production line which uses shale and coal gangue as raw material

Parameters

Model	Feeding Size(mm)	Output Size(mm)	Capacity(t/h)	Motor Power (kw)
PE150*250	≤130	15-45	1-4	5.5
PE250*300	≤150	15-55	3-6	7.5
PE250*400	≤210	25-60	5-20	15
PE400*600	≤350	40-90	15-60	30
PE500*750	≤425	50-100	40-110	45
PE600*900	≤500	60-125	90-180	55
PE800*900	≤600	80-140	100-220	75
PE750*1060	≤630	60-150	110-380	110
PE900*1060	≤700	100-160	230-390	110
PE900*1200	≤750	110-165	220-450	132
PE1000*1200	≤900	110-185	315-500	132
PE1200*1500	≤950	115-195	400-800	220
PE1500*1800	≤1200	135-225	500-1000	280
PEX150*750	≤120	10-40	8-25	15
PEX250*750	≤210	15-50	15-35	22
PEX350*750	≤300	15-50	18-40	30
PEX250*1000	≤210	15-60	15-60	30
PEX250*1200	≤210	15-60	20-60	37
PEX300*1300	≤250	25-60	16-105	55-75
