High Speed Fine Double Roller Crusher

Home Page ▶ Products > crushingsystem ▶ Detail

High Speed Fine Double Roller Crusher
Category: [Crushing system]

Send inquiry Buy It

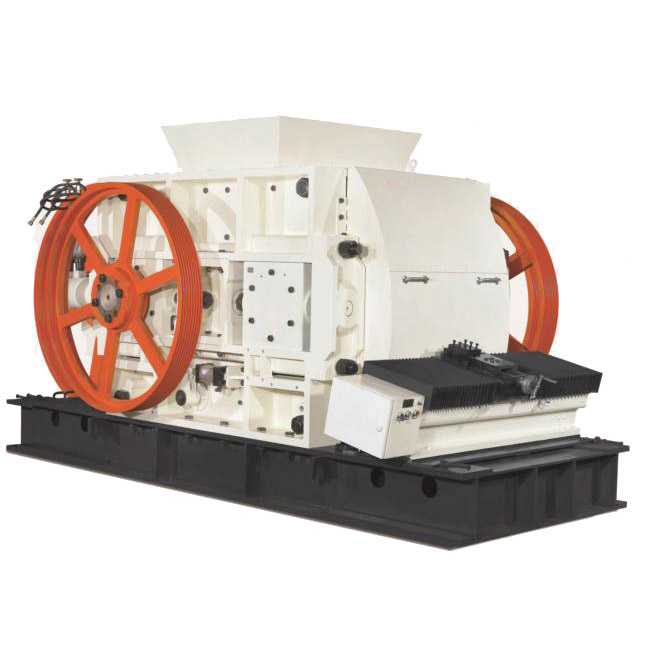

Fine pulverizing double roller crusher is used to further crush clay and other medium hard raw material into materials with the size ≤2mm.Both ends of the fine crusher are equipped with regulating pinched security block which is used to protect rolling circle and equipment.

The roller body adopts medium-manganese nodular cast iron .Hardness value may reach HRC60~62°.

The equipment is with two augers which can cut and even soil .

Parameters

Model	Roller Width	Capacity	Power	Dimensions
GS70*50	400mm	15-25t	18.5+18.5kw	294014301440mm
GS80*60	600mm	25-35t	22+22kw	315017001520mm
GS100*80	800mm	30-60t	45+45kw	420018001810mm
GS120*100	1000mm	40-90t	90+75kw	648020902200mm
GS140*120	1200mm	70-130t	110+90kw	785028702800mm
