Product Introduction

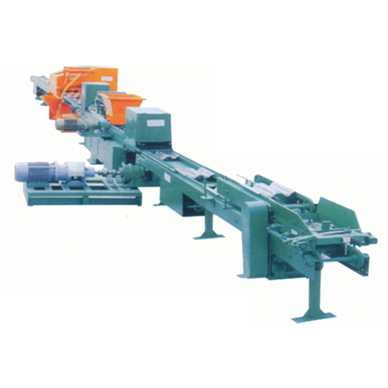

SM series concrete roof tile production line is a automatic extrusion production system. it is suitable for the region that have big market, it is a large-scale concrete roof tile production equipment.
The production process is put sand, cement, water and other raw materials into the mixer, after mixing, forming, tinting color, acrylic coating, racking, maintaining, releasing mould, it is finished.
All the process is controlled automatically. Just need to change different extrusion head and the mold, can produce different shape tiles. The advantage of the system is higher capacity, more automatic, simple technological process, easy to operate.
Tiles and Spare Parts
Production Line Composition
SM-20:
|
NO.
|
Name
|
Qty.
|
NO.
|
Name
|
Qty.
|
|
1
|
Main forming machine
|
1 set
|
9
|
Steel/aluminum tile mould
|
10000 pcs
|
|
2
|
Lifting and mixing system
|
2 sets
|
10
|
Semi-finished material conveyor line
|
1 line
|
|
3
|
Auto spray oil system
|
1 set
|
11
|
Tile mould conveyor line
|
1 line
|
|
4
|
Match colors machine
|
1 pc
|
12
|
Blower&conveyor line
|
1 line
|
|
5
|
Coloring machine
|
1 pc
|
13
|
Coloring conveyor line
|
1 line
|
|
6
|
Acrylic coating machine
|
1 pc
|
14
|
Acrylic coating machine line
|
1 line
|
|
7
|
Electric control cabinet
|
1 pc
|
15
|
Tile conveyor line
|
1 line
|
|
8
|
Oil tank
|
2 pcs
|
16
|
Other accessories tile moulds
|
1 set
|
SM-30:
|
NO.
|
Name
|
Qty.
|
NO.
|
Name
|
Qty.
|
|
1
|
Main forming machine
|
1 set
|
10
|
Reverse mould machine
|
1 pc
|
|
2
|
Lifting and mixing system
|
2 sets
|
11
|
Steel/aluminum tile mould
|
20000 pcs
|
|
3
|
Auto spray oil system
|
1 set
|
12
|
Semi-finished material conveyor line
|
1 line
|
|
4
|
Match colors machine
|
1 pc
|
13
|
Tile mould conveyor line
|
2 line
|
|
5
|
Coloring machine
|
1 pc
|
14
|
Blower&conveyor line
|
1 line
|
|
6
|
Acrylic coating machine
|
1 pc
|
15
|
Coloring conveyor line
|
1 line
|
|
7
|
Electric control cabinet
|
1 pc
|
16
|
Acrylic coating conveyor line
|
1 line
|
|
8
|
Oil tank
|
2 pcs
|
17
|
Tile conveyor line
|
2 line
|
|
9
|
Demould machine
|
1 pc
|
18
|
Other accessories tile moulds
|
1 set
|
Auxiliary Machine(customer owned by oneself)
|
Name
|
Specification
|
Qty
|
|
Workshop
|
10*30 ㎡
|
1 space
|
|
Tile shelf
|
120 pieces/shelf
|
85 pcs
|
|
Manual hydraulic forklift
|
3T
|
3 pc
|
|
Air compressor
|
W-0.9/7
|
1 pc
|
|
Maintenance room
|
10*3 ㎡
|
4 space
|
|
Tile yard
|
1500 ㎡
|
|
|
Consumables
|
Release agent
|
List of ingredients
|
Raw material
|
Specification
|
Qty(kg)
|
Remark
|
|
Cement
|
425#
|
50
|
|
|
Sand
|
Coarse sand and fine sand
|
80-100
|
Sand degree(<=10%)
|
|
Pigment
|
Iron oxide
|
1.5
|
|
Step 1:dry-mixing raw material 5 minutes
Step 2:mixing raw material with water 5-10 minutes
(Note: sand : cement = 1.8 : 1, 50kg cement can produce 31-34 pieces tiles )
|
