Product Introduction:

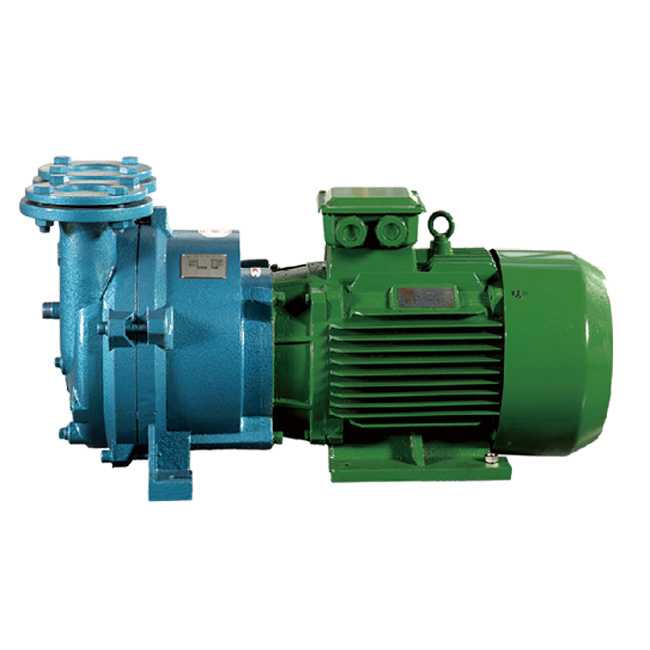

2BV series water ring vacuum pump is a single-stage pump with integral structure. The shaft seal adopts mechanical seal and has the characteristics of simple structure, simple installation and no oil.
It is suitable for removing gas and moist steam, whose inspiratory pressure can reach 33mbar absolute pressure (97% vacuum degree).
When it is operated for a long time under the condition that the suction pressure is lower than 80 mbar, the cavitation protection tube should be connected to protect the pump.
Equipped with atmospheric injector, it can absorb air pressure up to 10 mbar.The injector can be directly installed on the suction port. When used as a compressor, the pressure of vacuum pump can be up to 0.26MPa (absolute pressure).
Technical Parameters:
2BV Series vacuum pump
|
Model
|
Maximum volume
m3/min
|
Water consumption(L/min)
|
Rotating speed
(rpm)
|
Power
(kw)
|
Weight
(kg)
|
|
2060
|
0.45
|
2
|
2880
|
1.1
|
20
|
|
2061
|
0.87
|
2
|
2880
|
1.5
|
22
|
|
2070
|
1.33
|
2.5
|
2880
|
2.35
|
31
|
|
2071
|
1.83
|
4.2
|
2880
|
3.85
|
42
|
|
5110
|
2.75
|
7
|
1450
|
4
|
78
|
|
5111
|
3.83
|
8.5
|
1450
|
5.5
|
100
|
|
5121
|
4.68
|
10
|
1450
|
7.5
|
145
|
|
5131
|
6.68
|
15
|
1450
|
11
|
165
|
|
5161
|
8.3
|
20
|
970
|
15
|
252
|
2BE 202 Series vacuum pump
|
Model
|
Rotating speed
(r/min)
|
Shaft power
(KW)
|
Motor Power
(KW)
|
Maximum pumping rate
(m3/min)
|
Weight
(kg)
|
|
2BE 202
|
970
|
17
|
22
|
12.7
|
875
|
|
790
|
14
|
18.5
|
9.8
|
850
|
|
880
|
16
|
18.5
|
11.2
|
850
|
|
1100
|
22
|
30
|
14.2
|
940
|
|
1170
|
25
|
30
|
14.8
|
945
|
|
1300
|
30
|
37
|
15.8
|
995
|
|
