Concrete Batching Machine

Product Introduction:

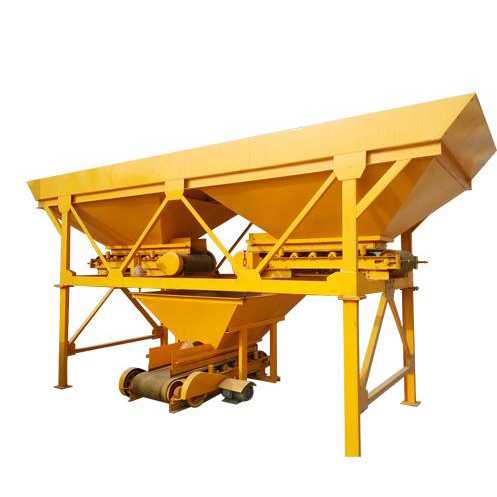

Concrete batching machine is widely applied to concrete batching plant and brick production line.It consists of feeding system,weighing system and electronic control system.The machine has the advantages of compact structure, simple operation, accurate ingredients and reliable control.

Technical Parameters:

Model	PLD600	PLD800 （2 bins）	PLD800 (3 bins)	PLD1200 (2 bins)	PLD1200 (3 bins)
Capacity of Weighting dipper	0.6m³	0.8m³	0.8m³	1.2m³	1.2m³
Capacity of storage dipper	0.95m³*2	3.2m³*2	3.2m³*3	7.3m³*2	7.3m³*3
Productivity (m³/h)	30	48	48	60	60
Batch able types of aggregate (kinds)	2	2	2	2	3
Dimensions (mm)	4100X1400X2300	6200X1900X2840	9330X1900X2840	6100X1900X3036	9800X1900X3361
Power (kw)	4*3	4*3	4*4	4*3	4*3
Overall Weight (kg)	1550	2050	3075	2580	4130

Parameters

Technical Parameters:

Model	PLD600	PLD800 （2 bins）	PLD800 (3 bins)	PLD1200 (2 bins)	PLD1200 (3 bins)
Capacity of Weighting dipper	0.6m³	0.8m³	0.8m³	1.2m³	1.2m³
Capacity of storage dipper	0.95m³*2	3.2m³*2	3.2m³*3	7.3m³*2	7.3m³*3
Productivity (m³/h)	30	48	48	60	60
Batch able types of aggregate (kinds)	2	2	2	2	3
Dimensions (mm)	4100X1400X2300	6200X1900X2840	9330X1900X2840	6100X1900X3036	9800X1900X3361
Power (kw)	4*3	4*3	4*4	4*3	4*3
Overall Weight (kg)	1550	2050	3075	2580	4130
