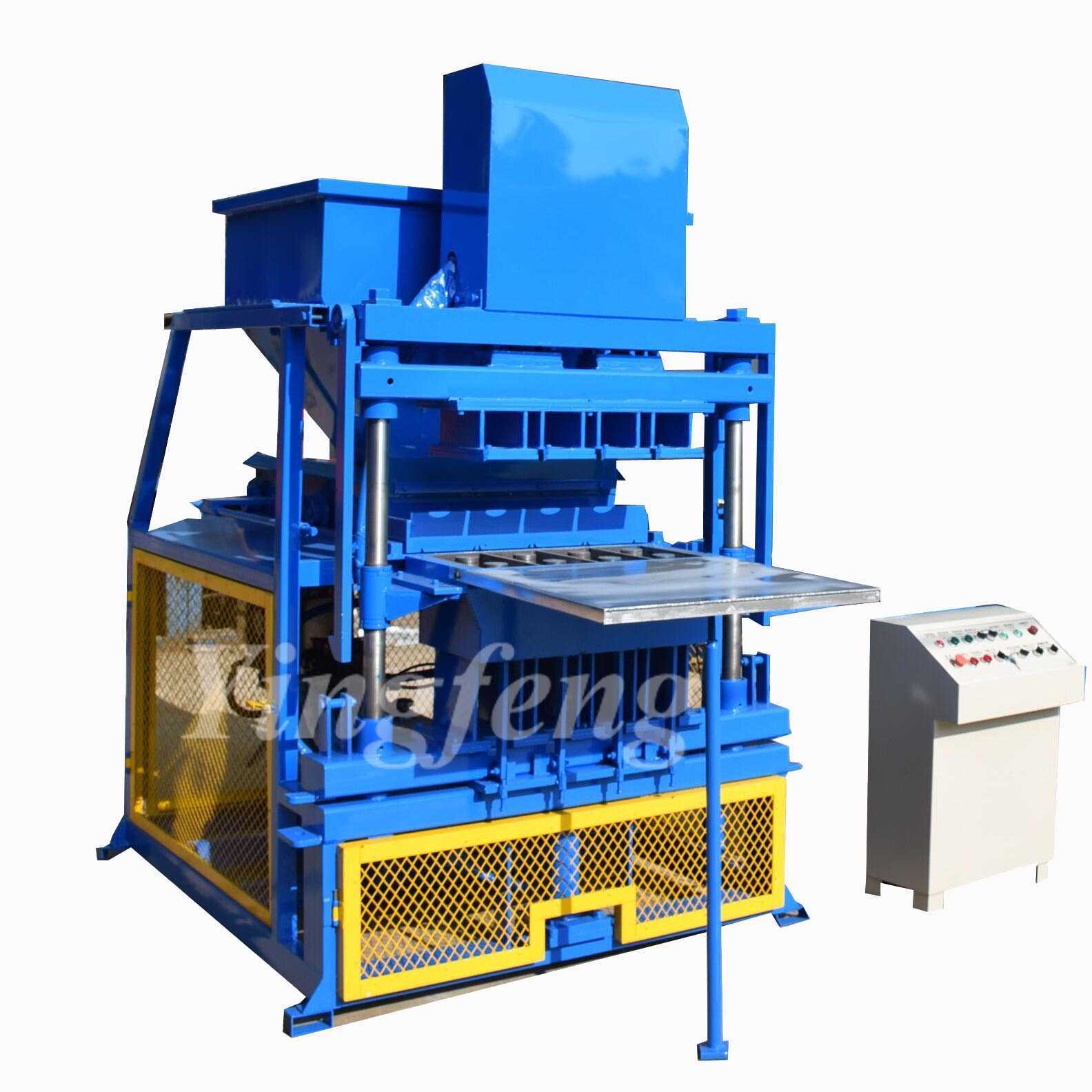

YF4-10 Hydraform Interlocking Block Making Machines

Product Introduction:

1 PLC controlled,which can be easily operated by only one person
2 Two brick would be made in less than 10 seconds.
3 By adjusting the screws,brick height can be changed.
4 Mould can be changed according to cusmer’s requirements.
5 High productivity.15000 bricks a day.
6 Double oil cylinder makes the brick much more strong

Technical Parameters:

Introduction & specification of YF4-10
Machine Type	YF4-10 interlocking brick machine
Dimension	2260x1500x2380mm
Shipping cycle	7-10s
Shipping method	Hydraulic pressure
Power	11kw
Pressure	25-32mpa
Total Mass	1300kgs
Rate voltage	380v-440v as request.
Capacity（pcs/h）	1400~1720

Brick Sample:

Related Product:

No.	Model	KW	Pcs/cycle	Capacity(pcs/h)	Pcs/8hours	Price USD
1	YF1-10	5.5	1	360~430	2880~3440	3500~4500
2	YF2-10	7.5	2	720~860	5760~6880	4500~5500
3	YF4-10	11	4	1400~1720	11520~13760	8000~9000
4	YF5-10	11	5	1800~2150	14400~17200	9000~10000

Click here to see More Interlocking Brick Making Machine>>

Parameters

Technical Parameters:

Introduction & specification of YF4-10
Machine Type	YF4-10 interlocking brick machine
Dimension	2260x1500x2380mm
Shipping cycle	7-10s
Shipping method	Hydraulic pressure
Power	11kw
Pressure	25-32mpa
Total Mass	1300kgs
Rate voltage	380v-440v as request.
Capacity（pcs/h）	1400~1720
