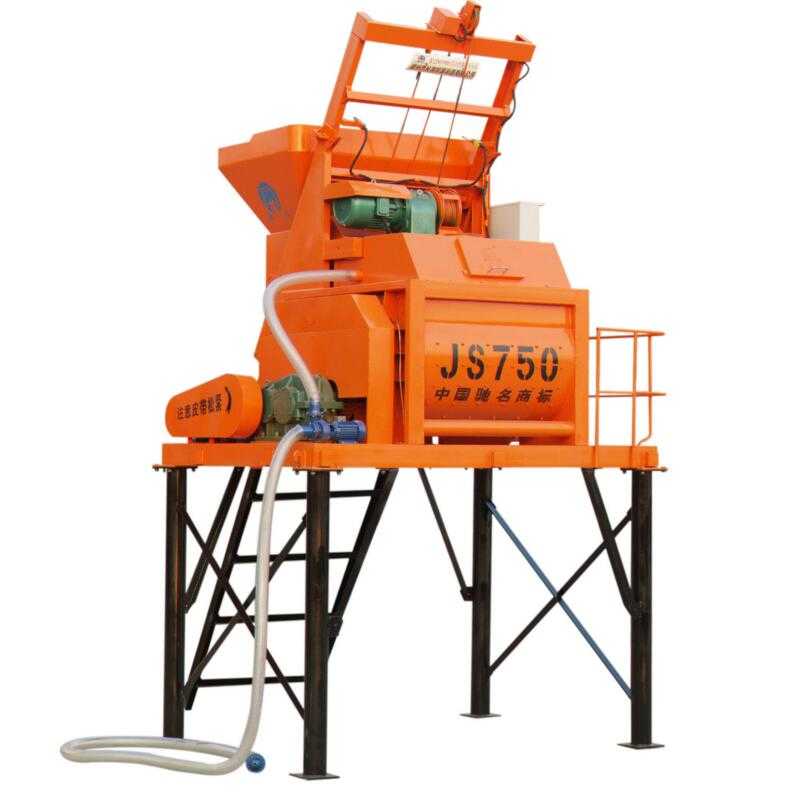

JS Concrete mixer ,Concrete mixing machine

JS Series Concrete Mixer is twin shaft compulsory concrete mixer. The common used models include JS500, JS750, JS1000, JS1500, JS2000 and JS3000. It cannot only work independently, but also be applied, together with concrete batching machine, in concrete batching plant. JS Series Concrete Mixer has such advantages as reasonable and compact structure, outstanding mixing quality, high mixing efficiency, low energy consumption and long service life.

Parameters

Model		JS500	JS750	JS1000	JS1500	JS2000	JS3000
Discharging Volume (L)		500	750	1000	1500	2000	3000
Charging Volume (L)		800	1200	1600	2400	3200	4800
Capacity (m3/h)		≥25	≥37.5	≥50	≥75	≥100	≥150
Max. Aggregate Size (mm)		60-80	60-80	60-80	60-80	60-80	60-80
Discharge Height (mm)		1500	1500/2700/3800	2700/3800	3800/4200	3800/4200	3800/4200
Mixing Blade	Speed (r/min)	26	26	25	25	25	25
Mixing Blade	Quantity	2*7	2*7	2*8	2*6	2*8	2*10
Mixing Motor	Model	Y180M-4	Y200L-4	Y225S-4	Y225M-4	Y250M-6	Y280M-6
Mixing Motor	Power (kW)	18.5	30	37	30*2	37*2	55*2
Hoist Motor	Model	YEZ132S-4	YEZ132M-4	YEZ160S-4	YEZ180M-4	YES80L-4
Hoist Motor	Power (kW)	5.5	7.5	11	18.5	22
Water Pump Motor	Model	50DWB20-8A	65DWB35-5	KQW65-100I	KQW65-100I	CK65/20L	CK80/50L
Water Pump Motor	Power (kW)	1.1	1.1	2.2	3	4	5.5
Hopper Lifting Speed (m/min)		18	18	18	20	20
Overall Dimension(LWH) (mmmmmm)		49002900 4200	53003200 4700	88003300 8100	95004000 8600	105004500 9200
