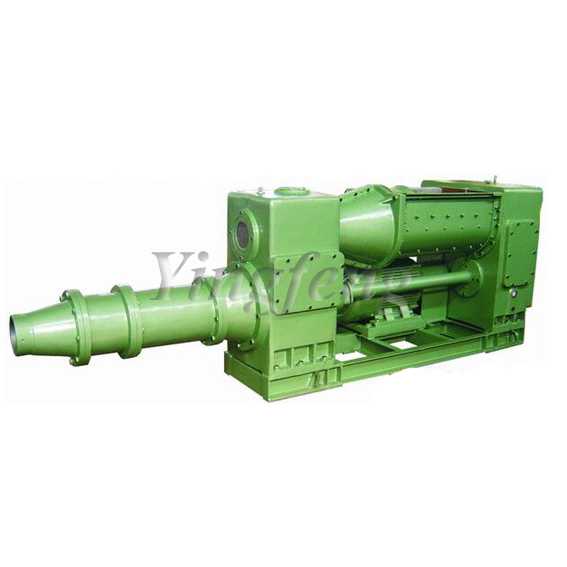

YFJN25 De-airing pugmill
Category: [De-airing pug mill extruder]

Send inquiry Buy It

YFJN25 De-airing pugmill is used with de-airing and disposing mud in porcelain products . It can be used to pug mud of 18-21% percent moisture content .The stainless steel de-airing pugmill is particularly suitable for pugging high-grade mud.

Parameters

YFJN25 De-airing pugmillMain technical parameters

Item	YFJN35	YFJN25	YNJN22	YNJN15
Auger diameter	Ф350mm	ф250mm	Ф220mm	ф150mm
Capacity	4000~6500 Kg/h	1500~3000 Kg/h	2000~2500 Kg/h	1000~1200 Kg/h
Crowded mud-axis speed	20r/min	21.82r/min	23r/min	0-28r/min
Motor Power	37kw	22~30kw	11~15KW	5.5KW
Dimensions	4138x2376x1519	3584×865×1230	2700X800X1400	2800X550X1140
Net weight	4479kg	2550kg	2100kg	850kg
