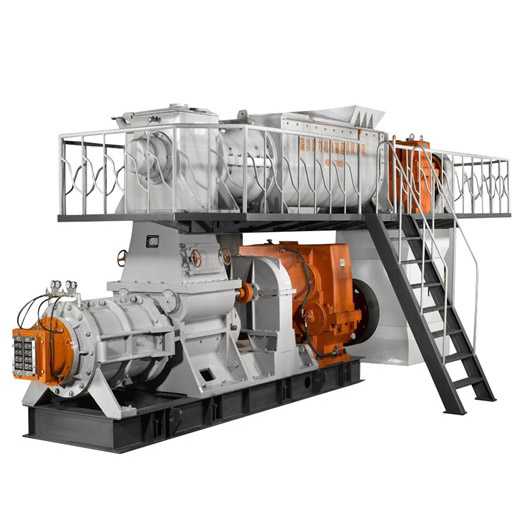

VP Hard plastic vacuum brick extruder brick machine supplier,brick machine for sale

Product Introduction:

1. Reducing raw materail moisture, lower drying cost

2. It is suitable for low, medium and high plastic raw material
3.It is suitable for one and twice stacking ,therefore simplifying production chart, saving investment

4.Finished product with higher density and higher strength,not easy to be damaged while packing ,transporting and construction.

Product Parts：

Alloy brick mould

Alloy hollow brick mould

Alloy mixer blades

Auger

Thrust bearing

Reducer

Auger adopts high chromium raw materials,the auger front part can produce 20 million bricks,the auger back part can produce 40 million bricks one time.

High load capacity to admit any pressure from soft to stiff extrusion condition.

Reducers with parallel shafts,case hardened and ground helical gears to ensure secure,progressive transmission and quiet operation and long durability.

Extruder shaft

Liner

Extruder shaft and gear adopts heat treatment.If with proper maintenance,we can give at least 3 years guarantee for gears and shaft.

1.Hinged body.Easy opening for maintenance tasks and part replacement

2.Highly wear resistant chrome alloy liners with a bolt-free system,preventing air leaks and making replacement operations easier.

Clay Brick Sample:

Click Here to See All Clay Brick Making Machine

Parameters

Technical Parameters:

Model	Capacity Up to(t/h)	Extruder Power (KW)	Vacuum degree (MPA)	Vacuum pressure (MPA)	Out size (mm)
VP50	32.5	132+55	≤-0.092	4.0	7400X2600X2600
VP60	45	200+90	≤-0.092	4.0	8800X2900X2900
VP75	55	250+110	≤-0.092	4.0	9400X3100X3300
VP90	80	315+132	≤-0.092	4.0	9600X3200X3500
VP120	125	450+200+18X2	≤-0.092	4.0	10200X3100X4025
