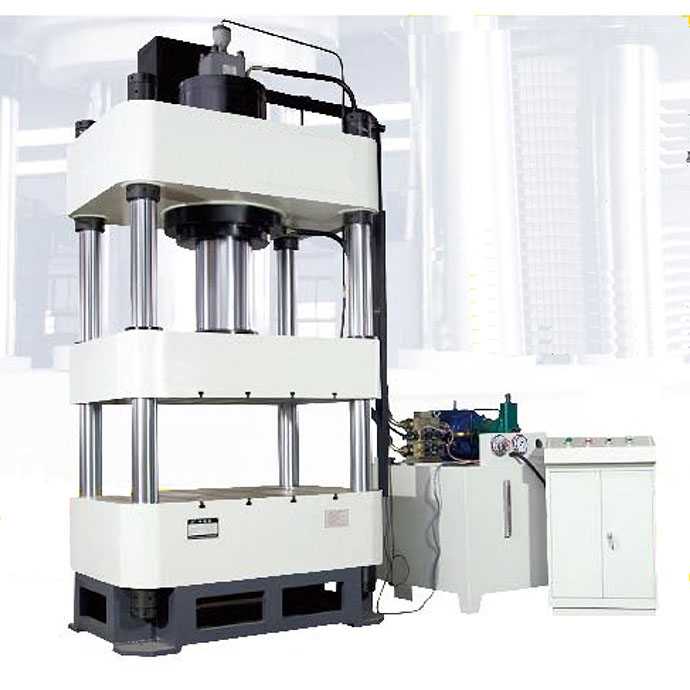

Refractory brick press machine ,hydrualic brick press machine

Product Introduction:

1. Computer optimized structure design, three-beam four-post structure,simple, economical and practical.
2. Hydraulic control cartridge valve integrated system reliability, long life andsmall hydraulic impact, reducing the link pipe and leak points.
3. Independent electrical control system working reliably. Action andintuitive. Easy maintenance.
4. Use the button centralized control, with adjustment for manual and semi-automatic operation.
5.Via the operator panel to choose from. Can be achieved given away twoconstant pressure forming process, and has features such as securityduring rolling.
6. Slider working pressure load and slow down quickly work into the travelrange can be adjusted according to process requirements.

Optional Configuration

1. Blanking damping device
2. Screen safety protection device
3. Touch screen type industry
4. Rapid mold clamping device
5. Mobile working platform
6. Oil cooling device
7. Ramming device
8. Die change with floating guide rail and a rolling bracket
9. Slider locking mechanis

Parameters

Specification	Unit	63T	100TA	100TB	100TC	160TA	160TB	200TA
Nominal pressure	KN	630	1000	1000	1000	1600	1600	2000
Max working pressure of liquid	Mpa	25	25	25	25	25	25	25
Oil cylinder range	mm	260	300	300	300	300	500	400
The largest open size	mm	500	600	600	540	480	800	800
Effective area of the workbench	mm	580	640	700	800	640	800	800
Effective area of the workbench	mm	500	560	700	800	550	800	800
Bench height	mm	580	700	700	700	750	766	685
Floor area	mm	1700*900	1800*850	190*850	2000*1000	1900*850	2200*1100	2200*1100
Machine Height	mm	4850	2300	2300	2515	2500	2800	2835
Forward speed	mm/s	26	80	80	80	80	100	100
Working speed	mm/s	15-20	10-17	10-17	10-17	12-18	12-18	8-13.5
Return rate	mm/s	57	64	64	64	64	64	72
Motor Power	KW	5.5	5.5	5.5	5.5	7.5	7.5	7.5
Pressure of top cylinder	KN		200	200	200	400	400	400
Route of below cylinder	mm		200	200	200	200	200	200
