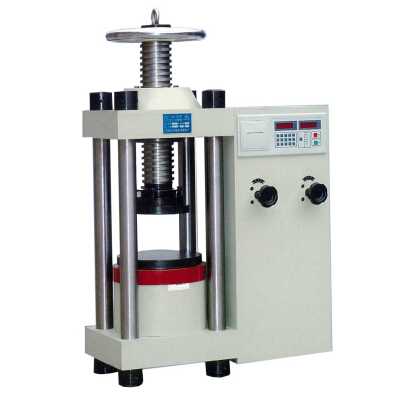

Pressure Testing Machine

Product Introduction

This machine mainly used for the compressive strength test to brick,block, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.

The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.

Technical Parameters

Mode	YES-1000	YES-2000
Max. testing power	1000KN	2000KN
Measuring range	0-1000KN	0-2000KN
Relative indication error	±1%	±1%
Size of the bearing plate	300*250mm	320*260mm
Max. distance between the up and down bearing plates	80-320	80-320
Max. piston stroke	20mm	20mm
Pressure of the hydraulic pump	40mpa	40mpa
Power	AC 220V 50HZ	AC 220V 50HZ

Parameters

Technical Introduction:

Mode	YES-1000	YES-2000
Max. testing power	1000KN	2000KN
Measuring range	0-1000KN	0-2000KN
Relative indication error	±1%	±1%
Size of the bearing plate	300*250mm	320*260mm
Max. distance between the up and down bearing plates	80-320	80-320
Max. piston stroke	20mm	20mm
Pressure of the hydraulic pump	40mpa	40mpa
Power	AC 220V 50HZ	AC 220V 50HZ
