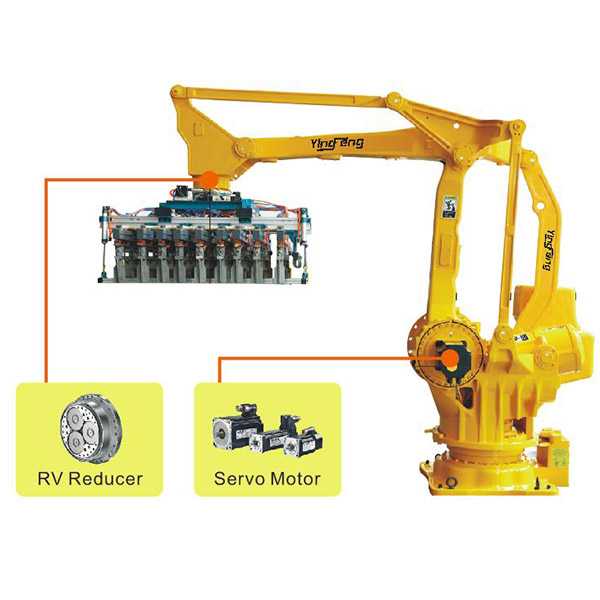

Brick Stacking Robot
Category: [Brick stacker and Separator]

Send inquiry Buy It

Advantages:
Improve the robot load capacity,Take a robot to work at different positions to expand working scope,work at high speed and position accurately.

Product Show:

Brick stacker machine Gripper

Click Here To See Other Brick Stacking Machine>>

Parameters

Technical Parameters:

Loading		800KG	500KG
Structure form		Joint type	Joint type
Degree of freedom		4	4
Horizontal Pull length		3.25m	3.25m
Repeated positioning accuracy		±0.5mm	±0.5mm
Weight		2900KG	2350KG
Power		24KW	18KW
Action Range	S Axis	-185°～+185°	-185°～+185°
	L Axis	-90°～+45°	-90°～+45°
	U Axis	-120°～+15.5°	-120°～+15.5°
	T Axis	-360°～+360°	-360°～+360°
Maximum speed	S Axis	70°/s	90°/s
	L Axis	70°/s	90°/s
	U Axis	70°/s	90°/s
	T Axis	130°/s	200°/s

Video

Automation Clay Brick Robotics Stacker Machine

Omnidirectional Clay Brick Stacker Robotics Stacking Machine Working in South Africa
