Product Introduction：

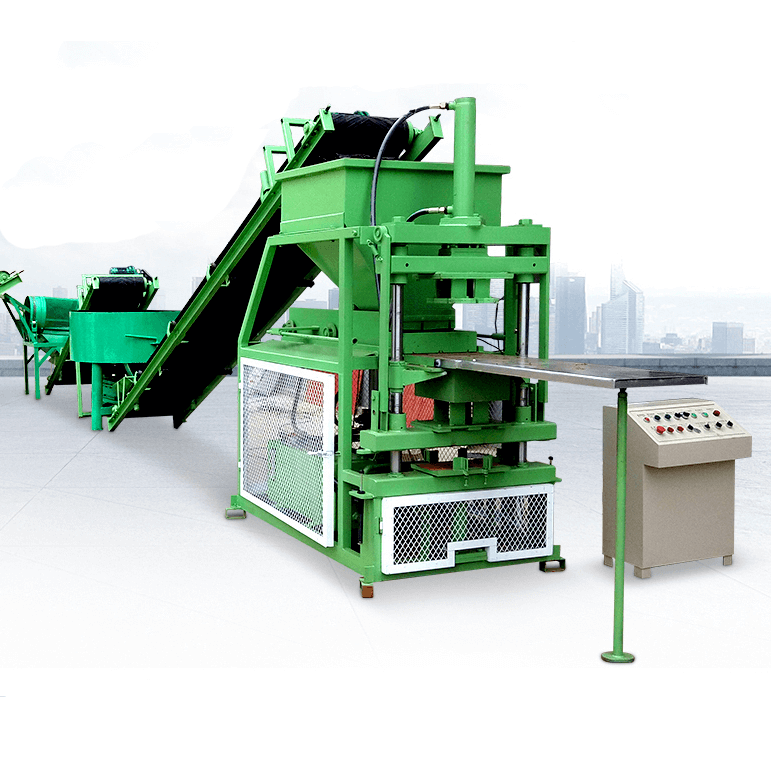

1.) YF2-10 hydraform interlocking block making machine is portable-type interlocking brick machine,which can be easily operated by only 1~2 person.And it has been widely used in African countries;

2.) By adjusting the moulds,the type of brick can be changed;

3.) One brick would be made in only 10 seconds.

Brick Sample:

Product Show:

Related Product:

No.	Model	KW	Pcs/cycle	Capacity(pcs/h)	Pcs/8hours	Price USD
1	YF1-10	5.5	1	360~430	2880~3440	3500~4500
2	YF2-10	7.5	2	720~860	5760~6880	4500~5500
3	YF4-10	11	4	1400~1720	11520~13760	8000~9000
4	YF5-10	11	5	1800~2150	14400~17200	9000~10000

Click here to see More Interlocking Brick Making Machine>>

Parameters

Technical Parameters:

Introduction & specification of YF2-10
Machine Type	YF2-10 hydraform interlocking block making machine
Overall size	130018002400 mm
Weight	1800kg
Power	7.5 kw
Voltage	Customizable
Pressure	38 Mpa hydraulic pressure
Shaping cycle	2-10 seconds
Capacity	800~900pcs/hour
Certification	ISO9001:2008,CE
Power source	Diesel/petrol engine/electric motor
Color	Customizable
Capacity（pcs/h）	720~860
