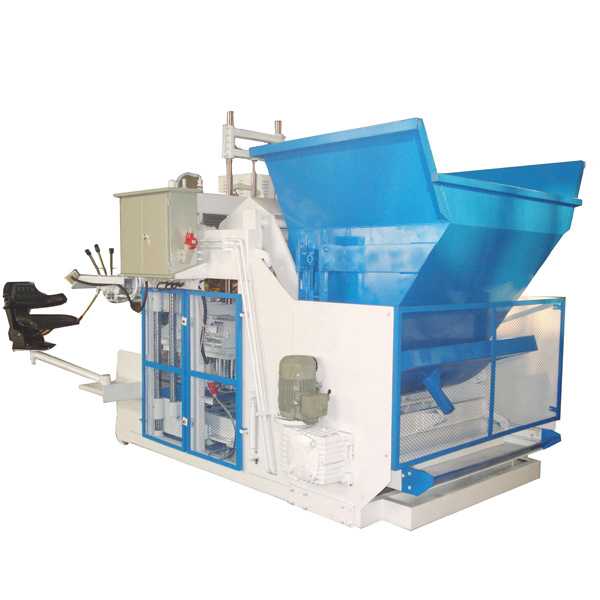

Product Introduction:Resonable designed achieve box vibration, hydraulic stripping,omnidirectional automatically movement. High quality of steel and precision welding made the machine a longer service life and hydraulic system made less fault during work. QMY12-15 has large productivity than the other small brick machine, the block density becomes higher, shaping speed quicker and block strength more.
Technical Parameters :
Brick Sample:
Related Product:
Mobile block making machine
No.
Model
Pcs/cycle
Pcs/h
Power
Phase
Price Scope /USD
1
2
160
Diesel/electric
Three/Single
700~800
2
4
320
Diesel/electric
Three/Single
2400~2600
3
QMY5-45
5
400
Diesel/electric
Three/Single
2700~2900
4
4
480
electric
Three
3100~3300
5
6
864
electric
Three
7800~8000
6
12
2880
electric
Three
14000~16000
7
QMY18-15
18
4320
electric
Three
16000~18000
Note: The above price scope is just for your budget reference based on standard 400X200X200 mould , the exact offer will be sent once you confirm the model and mould
Click here to see More Concrete Brick Making Machine>>
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Parameters:
|
||||||||||||||||||||||||||
|
Introduction & specification of QMY12-15 |
|
|
Model |
QMY12-15 |
|
Overall dimension |
3250*2100*2300mm |
|
Demolding and turning method |
Hydraulic |
|
Hydraulic pressure |
16-20Mpa |
|
Excitation frequency |
3200Hz |
|
Total power |
16KW |
|
Total mass |
4500KG |
|
Molding cycle |
10~15S |
|
Molding |
12 Pcs/mould(400*200*200) |
|
Moving method |
Automatically move and hydraulic steering |
|
Excitation way |
Three-dimensional box excitation |
|
Capacity（pcs/h） |
2880 |
