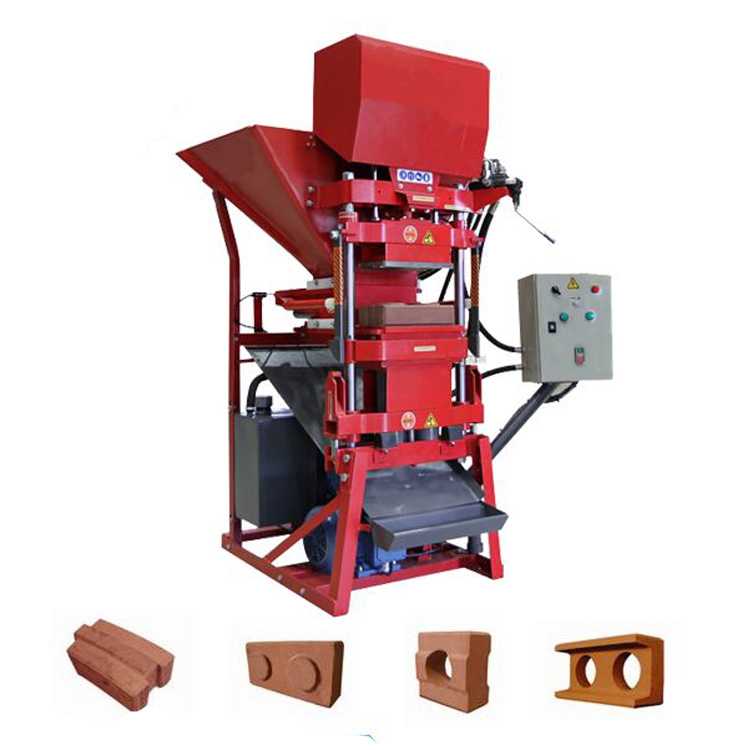

ECO2700 Interlocking Soil Brick Machine,soil interlocking brick machine from Yingfeng Machinery Co.,Ltd

Product Introduction:

ECO2700 interlocking soil brick machine is new equiped with automatic feeding mould and lifting mould.It can produced various high quality and precision blocks,bricks and floors only by this one machine without buying any other equipment.You can choose diesel engine and motor for ECO2700 brick machine.

Brick Sample :

Related Product:

No.	Model	KW	Pcs/cycle	Capacity(pcs/h)	Pcs/8hours	Price USD
1	YF1-40	0	1	90~100	720~800	600~680
2	YF2-40	0	2	180~200	1440~1600	700~780
3	ECO1-25	2.2	1	144~180	1152~1440	2400~2800
4	ECO2-25	4	2	288~360	2204~2880	2800~3200
5	ECO2700	4	1	270~340	2160~2720	3500~4000
6	ECO7000	5.5	2	480~580	3840~4800	4000~4500

Click here to see More Interlocking Brick Making Machine>>

Parameters

Technical Parameters:

Introduction & specification of ECO 2700
Model	Eco 2700
Overall size	1200(L)×1200(W)×1900(H)mm
shaping cycle	15-20S
Power	4KW motor Or 5 Hp diesel engine
Pressure	18-22MPA
Total weight	500KGS
Forming way	Hydraulic press
Raw material	Clay,soil ,cement,etc
Capacity (pcs/h)	270~340

Video

ECO2700 Interlocking Soil Brick Machine Video:
