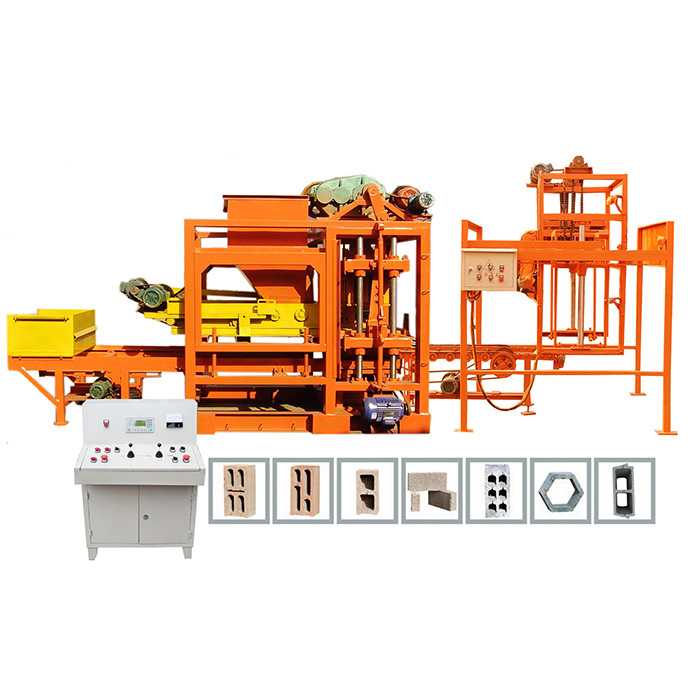

QTJ4-25 Cement Brick Making Machine,Cement Brick Machine from professional manufacturer and supplier Yingfeng Machinery Co.,Ltd

Product Introduction:

Reasonable in design and compact in structure. For this machine, a programmable controller is adopted so that it can achieve directional librating, converter braking and quick eliminating energy consumption. Additionally, it is no need manual supplying the plates so that the labor intension can be decreased largely.QTJ4-25 cement brick making machine is specially suitable to produce the high-intensity blocks, which can be piled up (three or five layers) immediately after the shaping.

Technical Parameters:

Introduction & specification of Hydraulic QTJ4-25
Overall Size	380L×200W×2600H(mm)
Cycle	25 Seconds
Carriage size	88(L)×55(W)×20(H) cm
Vibration frequency	max.4000r/m
Volatge	380V or adapt to local voltage
Total Mass	3800kg
Capacity（pcs/h）	576

Introduction & specification of QTJ4-25
Overall Size	3300(L)×1950(W)×2450(H)mm
Cycle	25Seconds
Carriage size	850(L)×470(W)×35(H)mm
Vibration Frequency	max.4000r/m
Electrical source	380V/50Hz
Total Mass	5000kg
Capacity（pcs/h）	576

Introduction & specification of QTJ4-25D
Overall Size	5000(L)×1650(W)×2000(H)mm
Cycle	25 Seconds
Carriage size	850(L)×550(W)×20(H)mm
Electrical source	380V/50Hz
Total Mass	4300kg
Power	17.5 KW
Capacity（pcs/h）	625

Brick Sample：

Related Product：

No.	Model	Capacity(pcs/h) 400x200x200 mm	Driving force	Phase	Automation	Price Scope /USD
1	QTJ4-28	514	mechanical	Three	Semi/full auto	4100~4400
2	QTJ4-25D	576	mechanical	Three	Semi/full auto	6000~6300
3	QTJ4-25	576	Hydraulic	Three	Semi	7800~8200
	QTJ4-25	576	Hydraulic	Three	full auto	10000~12000
Note: The above price scope is just for your budget reference based on standard 400X200X200 mould , the exact offer will be sent once you confirm the model and mould

Click here to see More Concrete Brick Making Machine>>

Parameters

Technical Parameters:

Introduction & specification of Hydraulic QTJ4-25
Overall Size	380L×200W×2600H(mm)
Cycle	25 Seconds
Carriage size	88(L)×55(W)×20(H) cm
Vibration frequency	max.4000r/m
Volatge	380V or adapt to local voltage
Total Mass	3800kg
Capacity（pcs/h）	576

Introduction & specification of QTJ4-25
Overall Size	3300(L)×1950(W)×2450(H)mm
Cycle	25Seconds
Carriage size	850(L)×470(W)×35(H)mm
Vibration Frequency	max.4000r/m
Electrical source	380V/50Hz
Total Mass	5000kg
Capacity（pcs/h）	576

Introduction & specification of QTJ4-25D
Overall Size	5000(L)×1650(W)×2000(H)mm
Cycle	25 Seconds
Carriage size	850(L)×550(W)×20(H)mm
Electrical source	380V/50Hz
Total Mass	4300kg
Power	17.5 KW
Capacity（pcs/h）	625

Video

Hydraulic QTJ4-25 Static Cement Brick Making Machine video
