Outlet pulling machine
Category: [Dryer and Kiln]

Send inquiry Buy It
skype email facebook twitter flickr youtube
Description
Parameters
Video

Product Introduction:

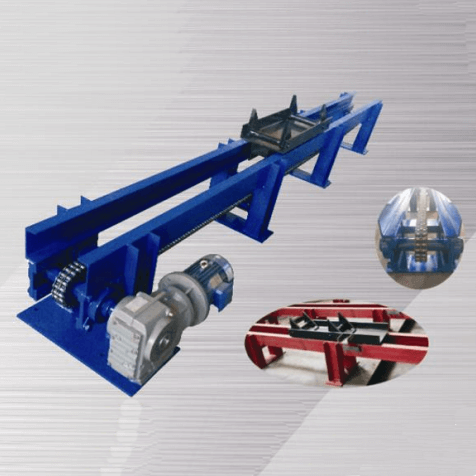

It is used in the outlet of dryer and tunnel kiln, to pull kiln carts of dried or finished fired bricks from kiln.


Technical Parameters:

Type 　OP-4 　OP-4.6 　OP-6.9
　For Kiln Type 　3.3m Tunnel Kiln 　4.6m Tunnel Kiln 　6.9m Tunnel Kiln
　Maximum Stretching Force(KN) 22 45 60
　Maximum Single Stroke(mm) 2800 2800 3750
　Stretching Speed(m/min) 6 6 5
　Motor Power(kw) 3 3 4
　Dimensions(mm) 　4480×1380×732 　5050×730×737 　5650×1380×795

Parameters
Technical Parameters:
Type 　OP-4 　OP-4.6 　OP-6.9
　For Kiln Type 　3.3m Tunnel Kiln 　4.6m Tunnel Kiln 　6.9m Tunnel Kiln
　Maximum Stretching Force(KN) 22 45 60
　Maximum Single Stroke(mm) 2800 2800 3750
　Stretching Speed(m/min) 6 6 5
　Motor Power(kw) 3 3 4
　Dimensions(mm) 　4480×1380×732 　5050×730×737 　5650×1380×795
